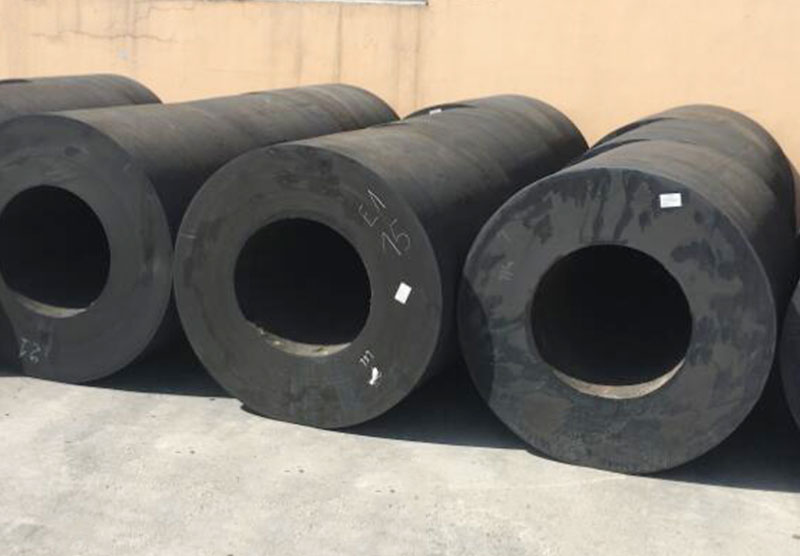

Cylindrical fender is a very simple type fender used for all kinds of vessels. It is easy to install and maintenance. normally installed in quay by chain,bars,anchor and brackets. The outer diameter up to 2000mm, the inner diameter ranges from 75mm to 1000mm. This cylindrical fender is applicable for lengthways and lateral movement.
Product Details
Cylindricalfender description:
Cylindrical fender is a very simple type fender used for all kinds of vessels. It is easy to install and maintenance. normally installed in quay by chain,bars,anchor and brackets. The outer diameter up to 2000mm, the inner diameter ranges from 75mm to 1000mm. This cylindrical fender is applicable for lengthways and lateral movement.
Cylindrical fender specification&dimension:
| Serial No. | Nominal size | Performance values at 50% deflection | |||
| Outer Diameter | Inner diameter Φd(mm) | Length | Energy absorption | Reaction force | |
| ΦD(mm) | L (mm) | (KN-m) | (KN) | ||
| WF-C150 | 150 | 75 | 500-30000 | 1.5 | 44 |
| WF-C200 | 200 | 100 | 2.6 | 60 | |
| WF-C250 | 250 | 125 | 4 | 75 | |
| WF-C300 | 300 | 150 | 6 | 89 | |
| WF-C350 | 350 | 175 | 8 | 104 | |
| WF-C400 | 400 | 200 | 10 | 119 | |
| WF-C500 | 500 | 250 | 16 | 148 | |
| WF-C600 | 600 | 300 | 24 | 179 | |
| WF-C700 | 700 | 350 | 31 | 208 | |
| WF-C800 | 800 | 400 | 41 | 237 | |
| WF-C900 | 900 | 450 | 52 | 268 | |
| WF-C1000 | 1000 | 500 | 1000-2000 | 64 | 297 |
| WF-C1100 | 1100 | 550 | 77 | 331 | |
| WF-C1200 | 1200 | 600 | 95 | 363 | |
| WF-C1300 | 1300 | 650 | 108 | 392 | |
| WF-C1400 | 1400 | 700 | 128 | 422 | |
| WF-C1500 | 1500 | 750 | 147 | 451 | |
| WF-C1600 | 1600 | 800 | 176 | 481 | |
| WF-C1800 | 1800 | 900 | 247 | 541 | |
| WF-C2000 | 2000 | 1000 | 321 | 653 | |
