Standard: GB/T549-2008
Type: B, open link chain
Class M1, grade A
Material: carbon steel with hot dip galvanizing
Product Details
Open link chain description:
Standard: GB/T549-2008
Type: B, open link chain
Class M1, grade A
Material: carbon steel with hot dip galvanizing

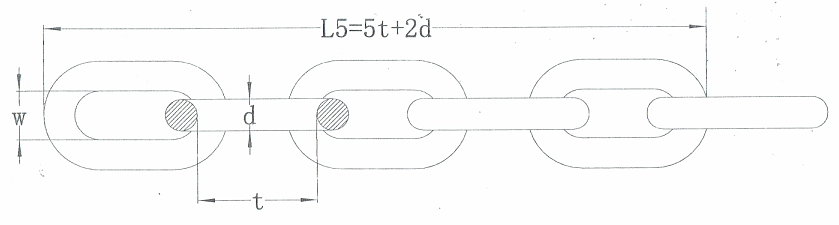

Open link chain specification:
| Diameter d (mm) | t(mm) | Inner width W(mm) | Breaking load (kN) | Working load (kN) | Weight (kg/m) |
| 10 | 40 | 14 | 37.00 | 13.4 | 2.17 |
| 12.5 | 50 | 18 | 57.81 | 28.76 | 3.39 |
| 14 | 57 | 20 | 69.93 | 34.78 | 4.25 |
| 16 | 64 | 22 | 93.72 | 47.10 | 5.56 |
| 17.5 | 70 | 25 | 113.31 | 56.35 | 6.65 |
